Why Temperature Uniformity is Critical in Lithography Bake & Cure Processes

In the precise world of semiconductor manufacturing, where features are measured in nanometers, every variable in the lithography process is meticulously controlled. One often-overlooked yet fundamental variable is temperature uniformity during the bake and cure stages. Variations of just a few degrees across a wafer can lead to inconsistent photoresist or polyimide (PI) properties, resulting in critical dimension (CD) variation, overlay errors, and reduced device yield. This article explores the profound impact of thermal uniformity on bake/cure processes and provides actionable guidance on how to calibrate and maintain a uniform temperature field.

The Critical Role of Temperature Uniformity in Lithography

The post-apply bake (PAB), post-exposure bake (PEB), and final cure are not merely drying steps; they are complex chemical processes where temperature acts as a catalyst.

Impact on Photoresist/PI Performance:

• Inconsistent Curing: Non-uniform heating leads to varying degrees of solvent evaporation and cross-linking. Areas at lower temperatures may remain under-cured, causing higher etch or strip rates, while overheated areas can become brittle or degrade.

• CD Variation and Profile Issues: For chemically amplified resists (CAR), the PEB step is critical for the acid-catalyzed reaction. A temperature gradient directly translates into a reaction rate gradient, causing measurable differences in line width (CD) across the wafer.

• Induced Stress and Wafer Distortion: Large thermal gradients can cause localized expansion and contraction, inducing mechanical stress in the wafer. This stress can lead to wafer bowing, overlay misalignment with previous layers, and even defects in underlying structures.

Mastering the Temperature Profile: Beyond Simple Setpoints

Advanced lithography processes require precise control over the entire temperature profile, not just a stable setpoint.

• Ramp-Up Rate: A controlled, uniform ramp-up is essential to prevent solvent burst or skinning, which can trap solvents and create defects.

• Soak Time & Stability: The wafer must be held at the target temperature long enough for a complete, uniform reaction across its entire surface. This demands exceptional stability during the soak period.

• Ramp-Down Rate: A controlled cooldown prevents thermal shock that can crack delicate films or warp the wafer.

Modern ovens allow for programmed, non-linear temperature curves to optimize this profile for specific materials.

How to Calibrate Your Thermal Field for Peak Uniformity

Achieving and maintaining sub-1°C uniformity requires a systematic calibration approach. The gold standard method involves using a thermal wafer mapping system.

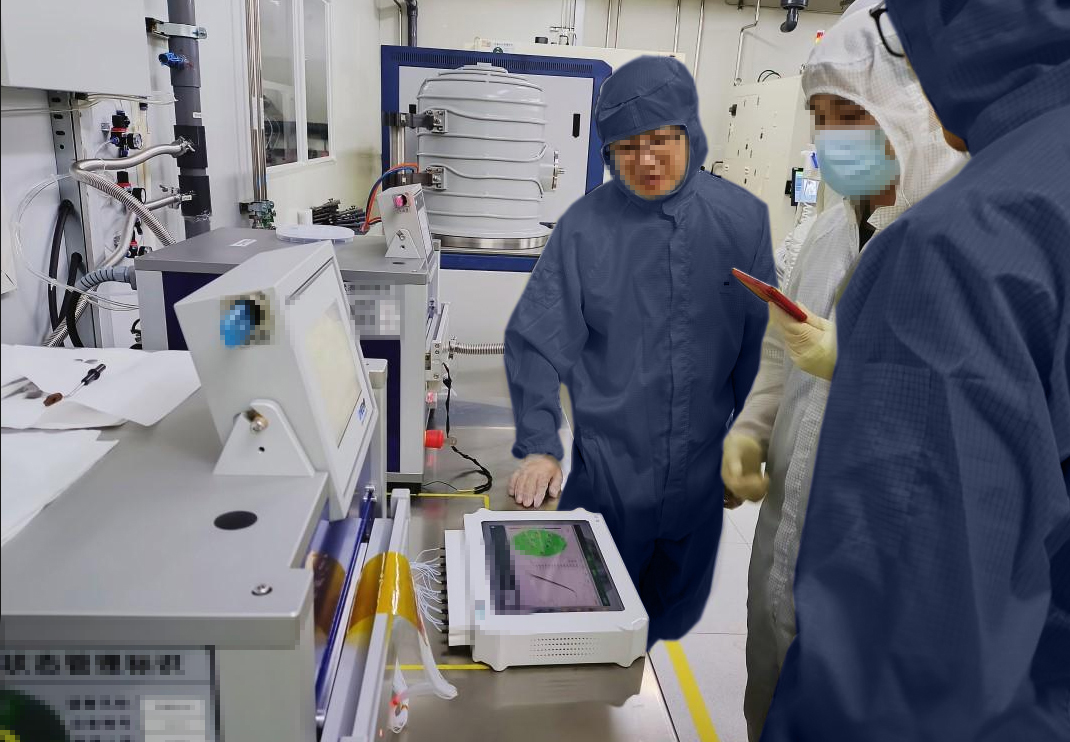

Calibration Workflow Using a TC-Wafer System:

1. Mapping the Baseline: Instead of relying on the oven's few built-in sensors, a thermal mapping system uses a wafer instrumented with high-precision thermocouples or RTDs (e.g., 20+ points). This "calibration wafer" is processed through a standard bake/cure cycle, recording data from every point in real-time.

2. Analyzing the Data: The system generates a detailed temperature map and a uniformity curve over time. Key metrics are analyzed:

• Spatial Uniformity: The maximum temperature difference (Tmax - Tmin) across the wafer at steady state.

• Transient Uniformity: Differences in how quickly various points on the wafer reach the target during ramp-up.

• Process Capability (Cpk): Statistical analysis of how the thermal performance fits within the required process window.

3. Making Adjustments: Based on the map, engineers can adjust the oven's heating zones, airflow balance, or wafer placement to compensate for hot or cold spots. For equipment with multi-zone control, this data is used to fine-tune individual zone setpoints.

4. Verification & Periodic Recalibration: After adjustments, a follow-up mapping run verifies improvement. Regular recalibration (e.g., quarterly) is essential to account for equipment drift, filter changes, or maintenance activities.

Choosing the Right Tools for Calibration

An effective thermal calibration system should provide:

• High Accuracy & Resolution: At least ±0.1°C accuracy and 0.1°C resolution to detect meaningful uniformity issues.

• High Data Density: Multiple sensing points (20+) to create a true thermal map, not just spot checks.

• Fast Data Logging: A high sampling rate (e.g., 10+ Hz) to capture rapid transients during ramp-up.

• Intuitive Visualization: Real-time graphs and post-process heat maps for instant visual diagnosis of uniformity problems.

• Robust Data Management: Automated report generation and historical data comparison to track equipment performance trends over time.

Conclusion: Uniformity as a Foundation for Yield

In lithography, temperature is a critical process parameter. Treating bake and cure uniformity with the same rigor as exposure dose or focus is no longer optional for advanced nodes. Proactive, data-driven thermal field calibration using wafer mapping systems is the most effective method to:

• Eliminate a hidden source of CD variation.

• Reduce defects caused by under/over-curing.

• Improve overlay performance by minimizing wafer distortion.

• Extend the usable process window and boost overall yield.

Investing in precise thermal uniformity is not just an equipment maintenance task; it is a direct investment in process control, device performance, and fab profitability.
